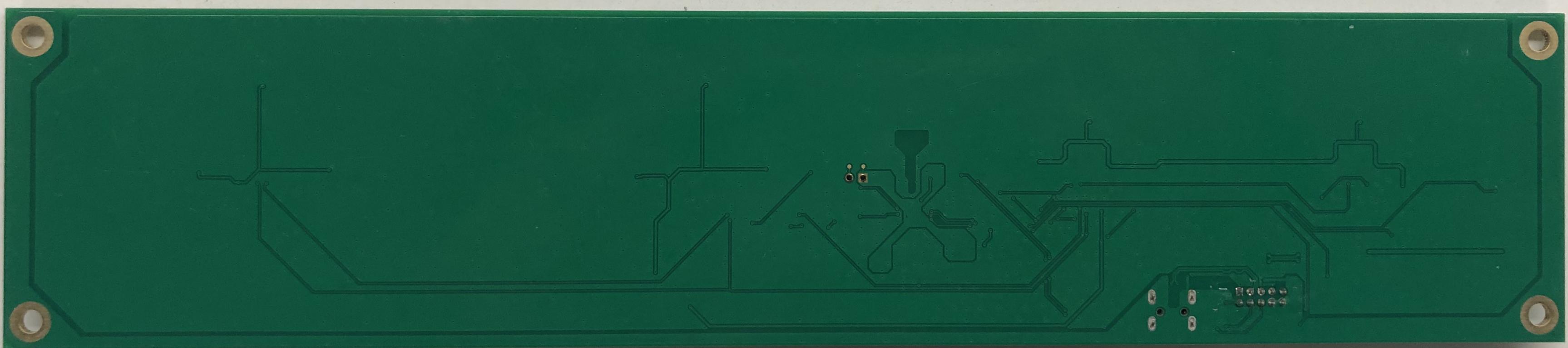

ETC Capacitive Controller
● High SNR: super high SNR, more than 3 times higher than the market peers
● available for direct bonding: stable performance, 100% effective touch area
● 100fps: smooth interaction, real-time response, refresh rate up to 100
● High precision: faster response speed and higher precision
Get Free Quote

Product Details


TypeETC Capacitive Controller
Interface2 USB 2.0, 1 UART
Power Dissipation0.85W (Typical value)
Power SupplyUSB power supply (5V +/-5% DC)
FPS120HZ (Typical value)
Delay of First Point35ms (Typical value)
Sensor ChannelTX: 112 (Max)  RX: 198 (Max)
Suggested Size40"~ 98"
Working temperature-20℃ ~ 70℃
Storage temperature-20℃ ~ 80℃
Touch points40points (Max)
Cover thickness ≤12mm (Typical value)
Minimum object recognizedPassive pen 6mm
SupportSize customization, USB communication
P-CAP Technology SupportedNano-Sliver, ITO, Metal mesh
Precision≤2mm
DimensionLength*280mm; Width*60mm; Thickness*1.6mm
